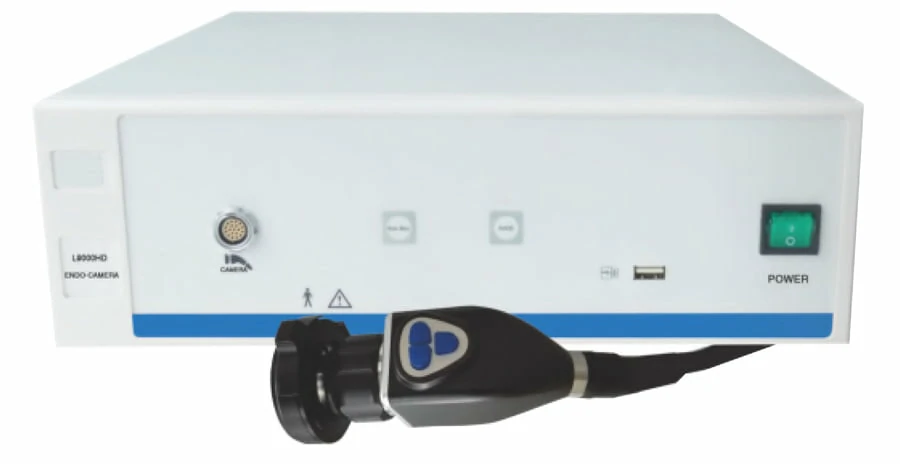

CITEC™ L9000 HD 3CMOS Endoscopy Camera

Product Details

Description:

The L9000 HD 3CMOS opens up new dimensions in the world of digital endoscopy.The high-resolution, Fully HD 3CMOS digital sensor(DVI video output) with high definition image format provide the highest levels of surgery field visibility. Due to the high resolution 1920x1080 pixels, the user is able to see even the smallest tissue details with absolute clarity.

Characteristics：

•1/3”x3CMOS progressive scanning 1080p;

•Full HD 1920 *1080 pixels;

•16:9 OR 16:10 format (Aspect Ratio);

•USB Video recorder(1080P), replay and storage system;

•The handle button can control up to 3 programmable functions;

•Five user settings for different users or endoscopy surgery ;

•Super white balance with 180 degree rotation function;

•UP to 2.5x digital zoom function and freeze function;

•EMC of CFDA approve.

Technical Data:

•Sensor:1/3”x3 CMOS

•Scanning system:Progressive

•Video outputs: 2xDVI-D; 2x HD/3G-SDI; 1 x Analog RGB or Y/Pb/Pr;

              2 x S-video, 2xComposite Video

•Resolution:≥1000TV lines

•Min illumination:≤1Lux(F2.0)

•Sensitivity:1920x1080P

•Signal / Noise ratio(S/N):≥70dB

•Shutter Auto:1/50s to 1/50000s

•Shutter Off:1/50s

•White/Balance(W/B):Auto/Manual

•Opposite Retrieval:Auto/Manual

•Quick coupling:C-Mount

•Power supply:AC110-240V,50/60HZ;Fuses:Φ5x20mm 250V 2A

•Safety standard:IEC601-1

•Power consumption:approx.40VA

•Storage temperature:-15ºC to +50ºC

•Operating temperature:-10ºC to +46ºC

•Relative humidity:0 to 90%

•Dims camera head:34(W) x 42(h) x58(D)mm

•Weight of camera head:appros.90g

•CCD cable:≥3m(extension cable up to 10m)

•Dims of CCU:335x100x340mm

Standard Equipped:

•1 x 75-5 Coaxial cable              •1 x Power cable

•1 x DVI cable                            •1 x 3CMOS camera

•1 x Y/C cable                            •1 x 3CMOS host
