CITEC™ Y Shape Tracheal/Bronchial Stent with OTW Introducer System
CITEC™ Y Shape Tracheal/Bronchial Stent is used for tracheal and bronchial stenosis caused by various malignant lesions.
Product Details
Performance Characteristics:
+ Y Shape design provides secure anchoring at the tracheal carina and supports both main bronchus.
+ Nitinol mesh ensures excellent expansion and flexibility of the stent.
+ Silicone covering helps to resist tumor inner growth.
+ High radial force maintains airway lumen under external compression, supporting stable ventilation.
+ Gold radiopaque markers for clearer visibility.
+ Atraumatic ends minimize mucosal irritation and tissue trauma.
+ Extraction lasso enables safe and easy removal of the stent.
+ Guidewire compatible up to 0.038”.

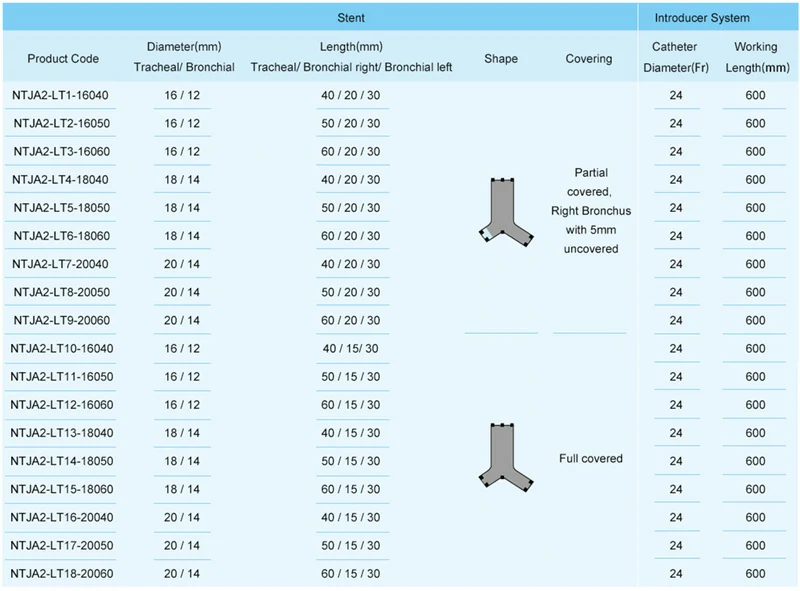

| Product Code | Stent | Introducer System | ||||
|---|---|---|---|---|---|---|
| Diameter(mm) Tracheal/ Bronchial | Length(mm) Tracheal/ Bronchial right/ Bronchial left | Shape | Covering | Catheter Diameter (Fr) | Working Length (mm) | |
| NTJA2-LT1-16040 | 16 / 12 | 40 / 20 / 30 |
| Partial covered, Right Bronchus with 5mm uncovered | 24 | 600 |
| NTJA2-LT2-16050 | 16 / 12 | 50 / 20 / 30 | ||||
| NTJA2-LT3-16060 | 16 / 12 | 60 / 20 / 30 | ||||
| NTJA2-LT4-18040 | 18 / 14 | 40 / 20 / 30 | ||||
| NTJA2-LT5-18050 | 18 / 14 | 50 / 20 / 30 | ||||
| NTJA2-LT6-18060 | 18 / 14 | 60 / 20 / 30 | ||||
| NTJA2-LT7-20040 | 20 / 14 | 40 / 20 / 30 | ||||
| NTJA2-LT8-20050 | 20 / 14 | 50 / 20 / 30 | ||||
| NTJA2-LT9-20060 | 20 / 14 | 60 / 20 / 30 | ||||
| NTJA2-LT10-16040 | 16 / 12 | 40 / 15 / 30 |
| Full covered | ||
| NTJA2-LT11-16050 | 16 / 12 | 50 / 15 / 30 | ||||
| NTJA2-LT12-16060 | 16 / 12 | 60 / 15 / 30 | ||||
| NTJA2-LT13-18040 | 18 / 14 | 40 / 15 / 30 | ||||
| NTJA2-LT14-18050 | 18 / 14 | 50 / 15 / 30 | ||||
| NTJA2-LT15-18060 | 18 / 14 | 60 / 15 / 30 | ||||
| NTJA2-LT16-20040 | 20 / 14 | 40 / 15 / 30 | ||||
| NTJA2-LT17-20050 | 20 / 14 | 50 / 15 / 30 | ||||
| NTJA2-LT18-20060 | 20 / 14 | 60 / 15 / 30 | ||||
Resources & Downloads
Download the Product Brochure
A complete technical reference for the CITEC™ Y Shape Tracheal/Bronchial Stent with OTW Introducer System — ready to share with your clinical and procurement teams.
